Real-Time Quantitative PCR Detection System 4 Channels

Product introduction: QPCR(Polymerase Chain Reaction) gives you a choice of quantitative methods for gene expression.The NB988 Real-time PCR is very useful and important for life science research and curative evaluation, and it is innovativ....

Send Inquiry

 Product introduction:

NB988 is a effective PCR device for qualitative or quantitative detection of nucleic acids, gene typing, and mutation analysis.With a high-performance yet low cost configurations to accommodate basic to advanced experimental applications.

Featuring four optical channels with user-selected filters covering a broad range of excitation wavelengths,it will meet the needs of a broad range of scientific applications in genomics research and as a better partner of your PCR.

The NB988 system adapts to almost any workflow requirement with flexible instrument control and data management.

Features:

*Standard with 7’’ LCD touch screen, functions quickly accessible through simple, one-touch commands

*High-throughput up to 96 samples per run

*Push-pull, electrical controlled elevating platform

*Concealed lid with constant temperature and isopiestic pressure bring high accurate temperature control

*Quick-start set-up so you can begin a run immediately

*Unique power-off protection function can save all the setted configurations for sudden power outages, and allow the experiment continues when power supply is restored.

*System can be installed in three distinct configurations, providing unmatched flexibility and convenience.

1. Co-located configuration (PC control)

2. Standalone (PC-free) configuration (Data can be export by USB and analysis on PC)

3. Networked configuration (PC software automatically detect all systems in LAN and allow to remote monitoring one of experimental progress and downloading of the completed run file to the PC at your desk)

Fast and uniform heating and heat sinking block

*Concealed lid with constant temperature and isopiestic pressure

*Electrical controlled elevating & automatic locked platform

*Thermo block is based on improved heat pipe technology, leading to extraordinary Iintra-well temperature homogeneity and maximized inter-well, inter-cycle reproducibility.

*Highly efficient PID&DSP control algorithm ensures faster respond and stronger interference resistance, fast and uniform heating and heat sinking

High sensitive and precise optical system

*High-sensitivity and wide dynamic range of fluorescence detection system, sample dynamic range could be from 101 to 1010 copies

*Fast and precise mechanical scanning structure ensures the illumination uniformity of 96 wells, Eliminate edge effects, no need for ROX calibration

*Fluorescence excitation by a high-intensity and long-life LED, Bulb Luminance will not attenuation over time, free maintenance optical system through the entire life.

* Professional designed fluorescence filters realize the highly fluorescence transmittance and meanwhile minimize the fluorescence channel cross talk.

Easy-to-use Software

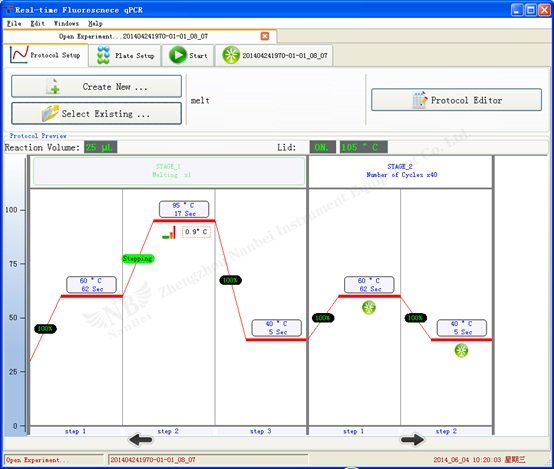

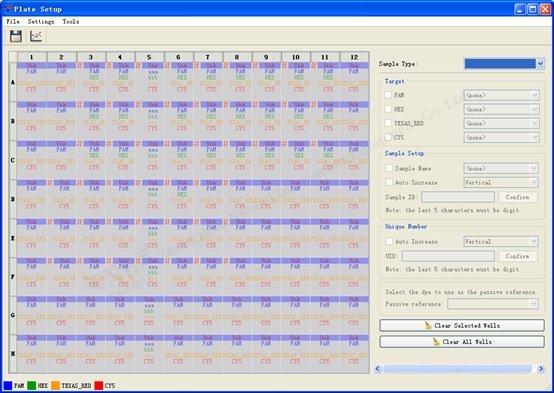

The NB988 Software offers an intuitive experience for protocols programming, plate layouts setting and experimental results analysising. The Software includes an unlimited license for multiple users.  All the excellent features make the instrument to your ideal choice for qPCR.

*Friendly interface and clearly functional modules design, first-time users can easily start a new experiment.

* All experiment data and setting options are shown conveniently on a single interface. User modifications to analysis parameters can be seen instantly

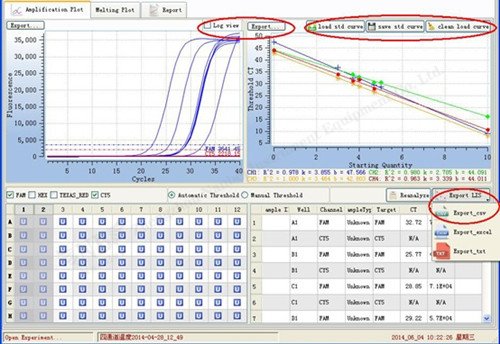

*Powerful analytical capabilities, optional automatic and manual threshold setting bring reliable date you can work on.

*Experimental date can be export in .csv, .excel, .txt format, with this capability, the NB988 can interface with your laboratory information system directly.

*Unique designed universal report can be customized according to the requirements, report review and print function help clinical documentation as needed.
Generate the quality data that you can depend on
Excellent amplification and homogeneity of reaction products

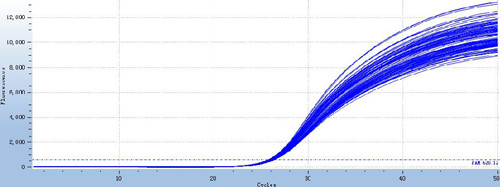

Dynamic range of gene quantification at low dilutions .This real-time PCR run was done using 5 ng of hepatitis B virus DNA in each of the 96 block positions. A 135 bp amplicon of the hepatitis B virus gene was amplified using SYBR Green I detection.

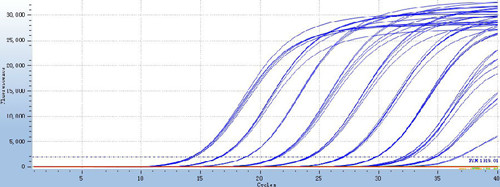

A hepatitis B virus gene fragment was amplified in ten serial 1:5 dilutions ranging from 10^8 to 10^0 copies per well. Eight replicates were run for each dilution. Results on the NB988 System show excellent reproducibility and resolution down to very low copy numbers.

Technical parameters:

Thermal Block
Block formats
96-well
Sample volume
5-50ul
Consumables
0.1ml 96-well unskirted Plates; 0.1ml 8-strip tubes (Optical flat cap)
Max. heating rate
4.2℃/s
Max. Cooling rate
4.2℃/s
Temperature range
4.0-99.0℃
Temperature accuracy
±0.1℃
Temperature uniformity
±0.3℃
Temperature steps
1-99
Heat Lid
Temperature range
100-120℃
Control
Automatic temperature and pressure setting
Optics

Excitation
4LEDS
Excitation range
470-630nm
Detector
Photodiode
Detection range
525-670nm
Detection channels

Channel
Excitation(nm)
Emission(nm)
Pre.Calibrated Dyes
1
470
525
FAM,SYBR CREENI
2
523
564
VIC,HEX,TET,JOE
3
571
621
ROX,TEXAS-RED
4
630
670
Cy5
Multiplex
Up to 4 targets
Detection range
1-10^10copies
SOFTWARE
Analysis modes
Absolute quantification,Relative quantification,Melt curve analysis,High Resolution Melting
PERFORMANCE
Reproducibility Correlation coefficient of nucleic acid precision
CV≤2.1%
R≥0.997
SYSTEM
Operating systems
Windows XP,Windows 7
Communication
USB or Ethernet
Power usage
AC220*(1±10%)V,50*(1±2%)Hz
Dimensions
540mm*300mm*480mm
Weight
35kg
